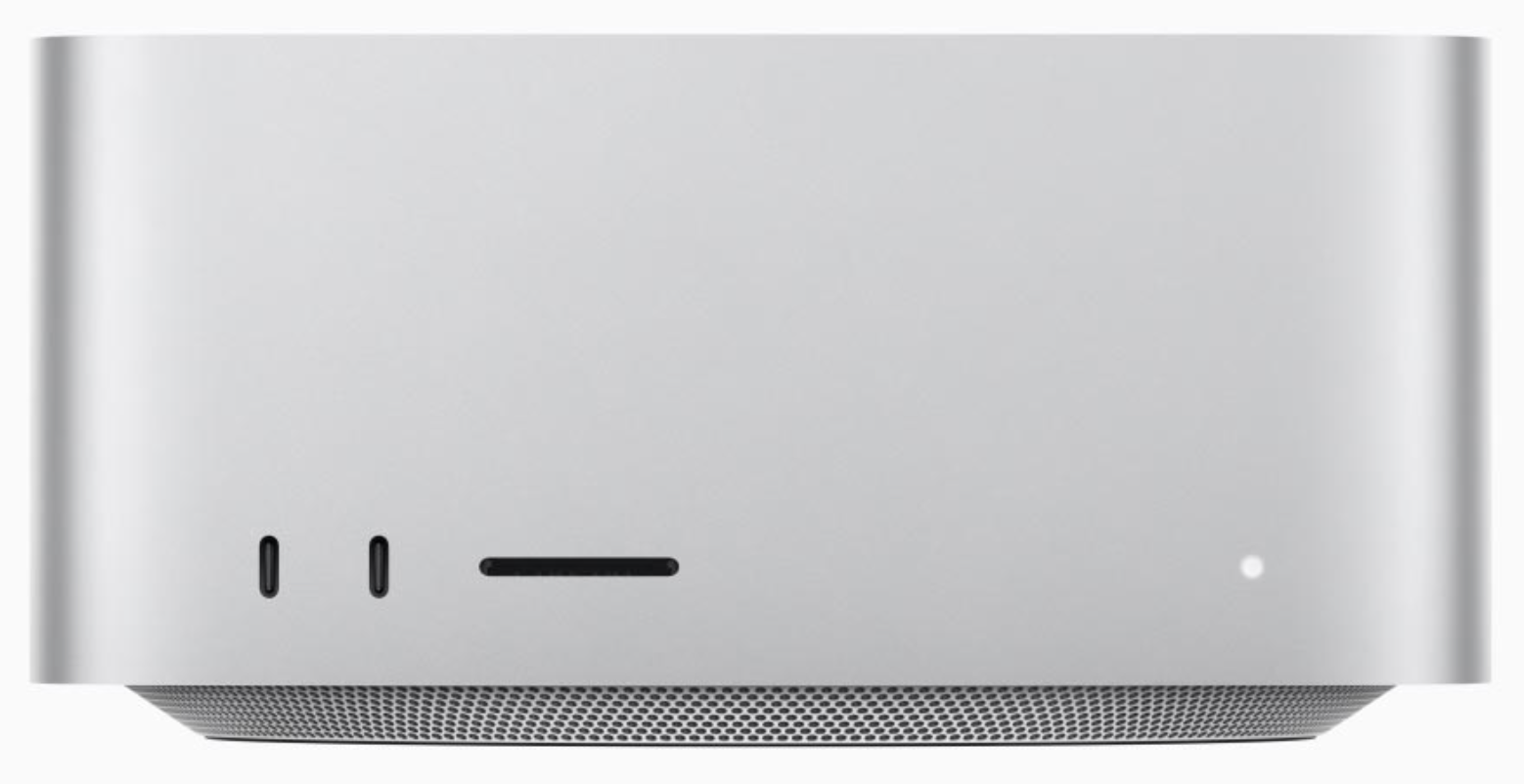

Mac Studio M3 Ultra 512GB RAM 16TB SSD

Apple Mac Studio – M3 Ultra | 512GB Unified Memory | 16TB SSD

The ultimate Mac Studio configured with the Apple M3 Ultra chip, 512GB unified memory, and a massive 16TB SSD — engineered for the most demanding creative and professional workflows.

Chip

• Apple M3 Ultra chip
• 28-core CPU (20 performance cores + 8 efficiency cores)
• 60-core GPU with hardware-accelerated ray tracing
• 32-core Neural Engine
• 819GB/s memory bandwidth
• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
• Two video decode engines, four video encode engines, four ProRes encode/decode engines
• AV1 decode

Memory

• 512GB unified memory

Storage

• 16TB SSD

Display Support

• Simultaneous support for up to eight displays
• Up to eight displays with 6K resolution at 60Hz or 4K at up to 144Hz
• Up to four displays with 8K resolution at 60Hz or 4K at up to 240Hz
• Thunderbolt 5 digital video output (DisplayPort 2.1 over USB-C)
• HDMI 2.1: up to 8K at 60Hz or 4K at 240Hz; supports VRR, HDR, and multichannel audio

Connections & Expansion

• Four Thunderbolt 5 (USB-C) ports (up to 120Gb/s) – supports Thunderbolt 5, USB 4, USB 3, DisplayPort 2.1
• Two USB 3 (USB-A) ports (up to 5Gb/s)
• HDMI 2.1 port
• 10Gb Ethernet (Nbase-T, supports 1Gb/2.5Gb/5Gb/10Gb via RJ-45)
• 3.5mm headphone jack with high-impedance headphone support
• Two front Thunderbolt 5 ports (up to 120Gb/s)
• SDXC card slot (UHS-II) on front

Wireless

• Wi-Fi 6E (802.11ax)
• Bluetooth 5.3

Audio

• Built-in speaker
• 3.5mm headphone jack with advanced high-impedance headphone support
• HDMI multichannel audio output

Size & Weight

• Height: 3.7 inches (9.5 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight: 8.0 pounds (3.64 kg)

Power

• Maximum continuous power: 480W
• Line voltage: 100–240V AC, 50–60Hz

In the Box

• Mac Studio
• Power cord

Operating System

• macOS (latest version)
